Auxx Lift - Platform Storage Lift

Regular price $1,489.00
Sale price $1,489.00 Regular price $2,189.00
Unit price
Compare Ask a question

Ask a Question

* Required fields

 Size guide Share

DESCRIPTIONS

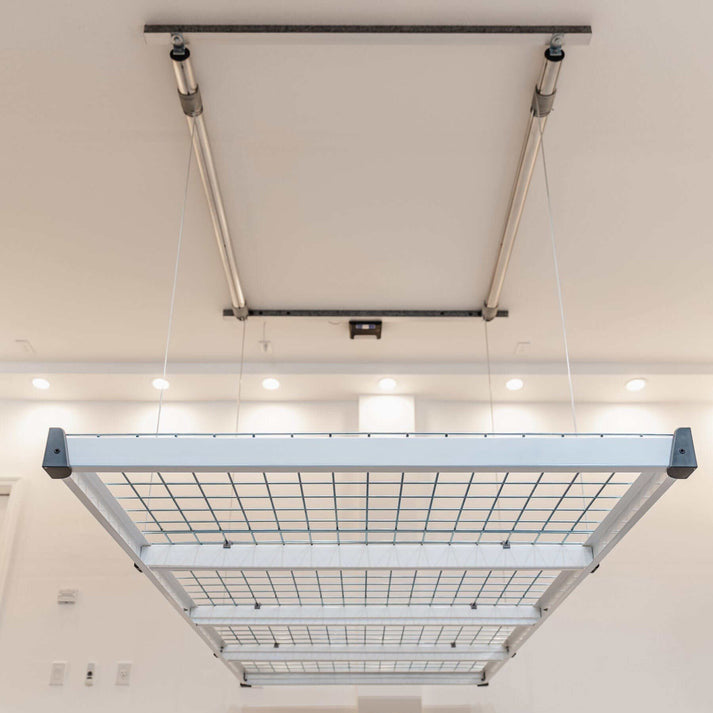

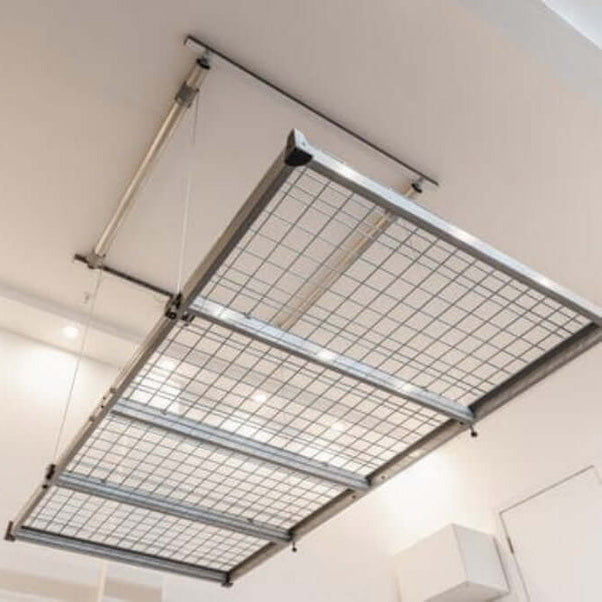

With Auxx-Lift, the Ultimate Platform Storage Lift, Unleash Elevated Storage

In your garage, bid adieu to the dangers of using a ladder and the difficulties of heavy lifting! Introducing the Auxx Lift, a motorized garage storage lift that will easily and stylishly up your storage game. This platform storage lift is your go-to option for optimizing overhead space without the fuss thanks to its remarkable lifting capacity of up to 600 lbs.

Features:

Maximum Lifting Capacity Options: Select between 400 and 600 pounds to easily meet your storage demands.

Platform Size Options: Choose from four different sizes to customize your lift: 3'x6', 3'x8', 4'x8', and 4'x6'.

Safety First: Self-leveling technology and UL-tested safety precautions eliminate the need for ladders, guaranteeing safe storage.

Concealed Wiring: Enjoy a clean aesthetic with almost wireless operation, thanks to hidden cables.

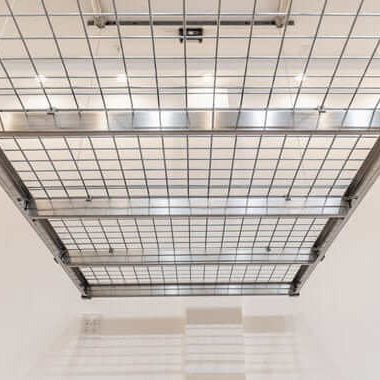

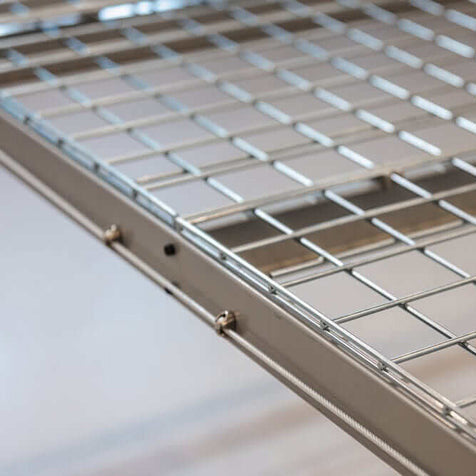

Sturdy Decking: Rust-resistant heavy-duty mesh ensures a long-lasting surface that won't bend or sag.

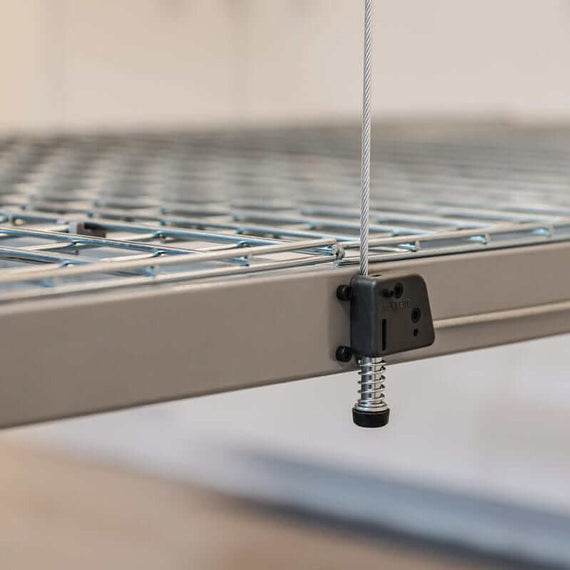

Reliable Cables: Reliable and secure lifting is ensured by vinyl-coated aircraft cables, which have an ultimate breaking strength of 4,200 pounds.

Easy Installation: Easy setup that includes videos and a thorough instruction manual to get your Auxx Lift up and running fast.

Versatile Mounting: Auxx Lift is easy to install on any ceiling, whether it is supported by joists, rafters, or a slope.

Motorized Garage Storage Lift: Discover the power of motorized lifting, which makes it simple to raise your equipment.

Wireless Remote Control: With the wireless remote control, you can easily operate your lift. It has auto high and low positions for your convenience.

PVC-Free, Sturdy ABS Components: Constructed with pride in the USA, the Auxx-Lift features sturdy, PVC-free ABS components and excellent craftsmanship.

2-Year Warranty: A 2-year warranty that reflects the trust in the dependability of the Auxx-Lift gives you piece of mind.

60 Days Money Back Guarantee: Take advantage of a great 60-day money-back guarantee and try the Auxx Lift risk-free.

What’s Included:

  • 2 motors (Lifting capacity options: 400lbs / 600lbs)

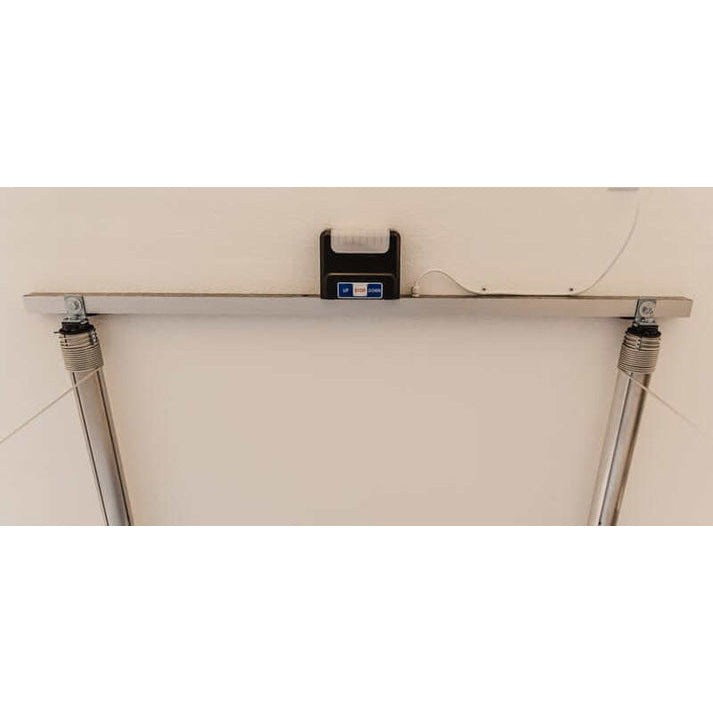

  • Lifter Controller with Programmable Stopping Points
  • Wireless Remote Control
  • 2 C-Strut Channels

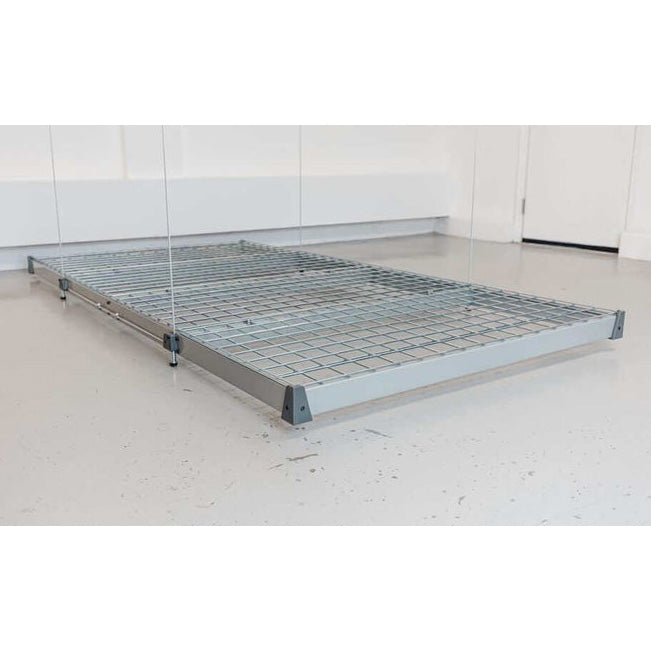

  • Platform (Size Options: 3'x6', 3'x8', 4'x8', 4'x6')
  • Mounting Hardware

SPECIFICATIONS

General specs

  • Model: Auxx-Lift 1400 (400lbs) / Auxx-Lift 1600 (600lbs)
  • Lifting Capacity: Up to 400 lbs / Up to 600 lbs
  • Max. Travel Distance: 16 ft (400 lbs) / 22 ft (600 lbs)
  • Min. stored height: 8 in (The distance measured from your ceiling to the bottom of the platform when in the raised position.)

Roof Support

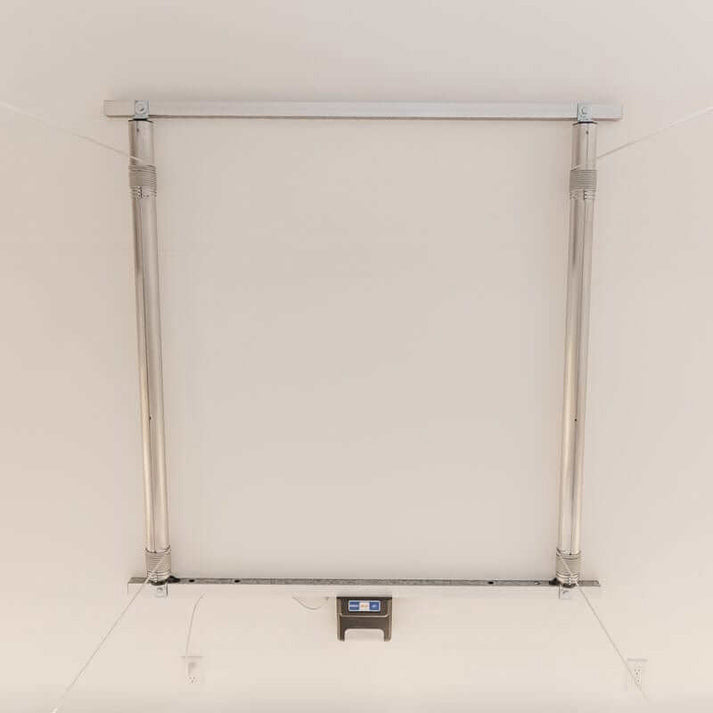

  • Type: (2) 1 5/8" x 60" strut channel
  • Fasteners: (8) 5/16" x 4" SPAX© Lag Bolts
  • Mounting Area: 5' x 5' over 3 joists/rafters

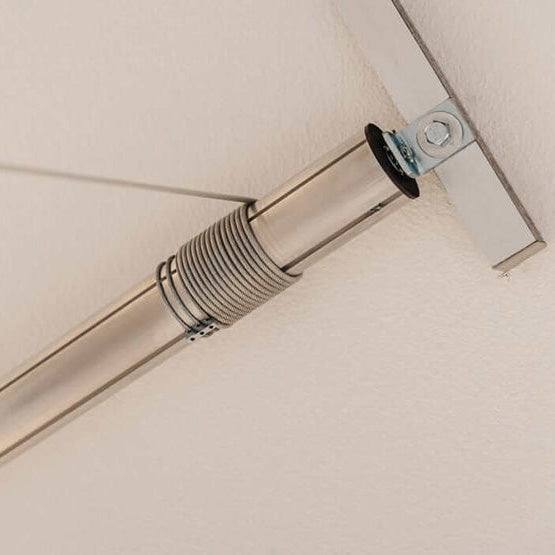

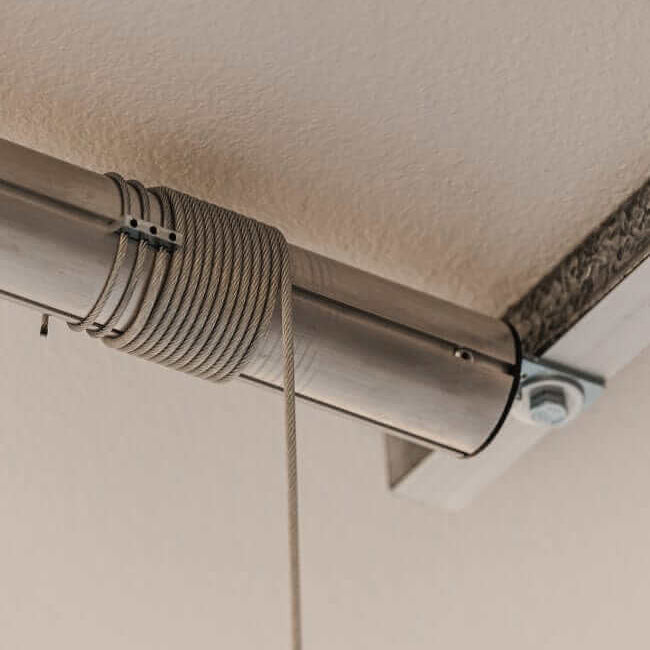

  • Cable: 1/8” Vinyl-coated Steel 7x19 (400 lbs) / 3/16” Vinyl-coated Steel 7x19 (600 lbs).
  • Cable Strength (Ultimate tensile strength): 2,000 lbs (400lbs) /4,200 lbs ( 600lbs)

Operating Requirements

  • Switch Voltage: 110V / 120V
  • Transmitter: 433.92 MHz
  • Electrical Cord: 10 FT / 16 gauge / NEMA 5-15
  • Min. circuit size: 15 amp

Platform Specs

  • Thickness: 2.5 inches
  • Support Frame: C-Channels (15gauge)
  • Face material: 3 x 3 galv. Wire Mesh (4gauge)

Motors

  • Type: IP44 (T-Motor)
  • Rated Power: 235 W (400 lbs) / 680 W (600 lbs)
  • Rated Current: 2.2 A (400 lbs) / 6.0 A (600 lbs)
  • Voltage / Phase: 100-120V AC / Single
  • Duty Cycle @ Max. Capacity: 3 min on, 15 min off (if you run the Auxx-Lift continuously for more than 3 min at a time, the motors will switch off automatically and require to cool down for 15 min or less.)

Size and Weight

  • Dimensions: 3ft x 6ft, 3ft x 8ft, 4ft x 6ft, 4ft x 8ft
  • Weight: 128 pounds

INSTALLATION

For installation please call 805-907-9322
