Auxx-One Single Motor Universal Lift

DESCRIPTIONS

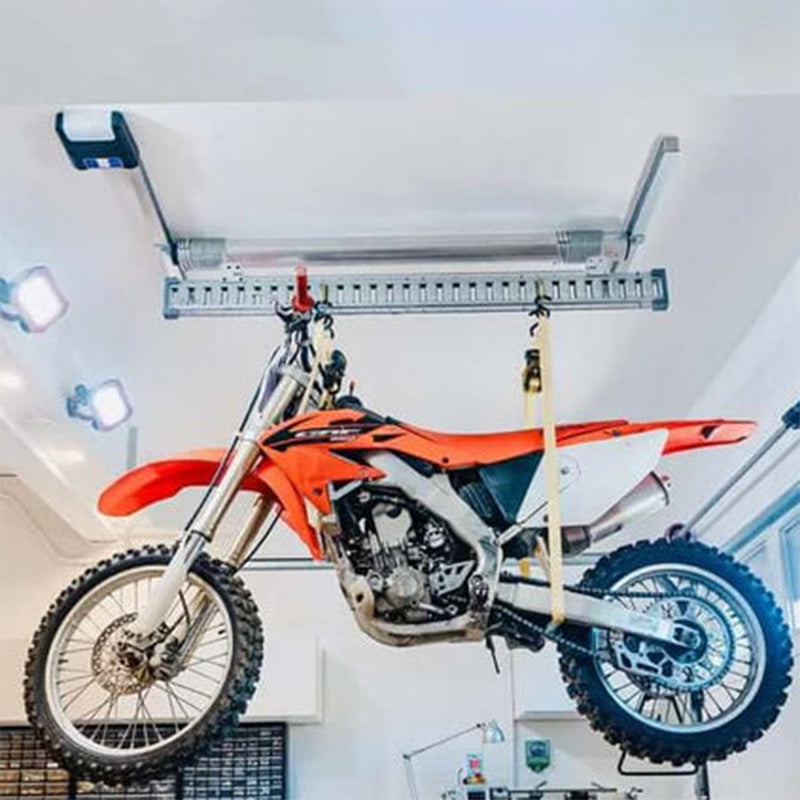

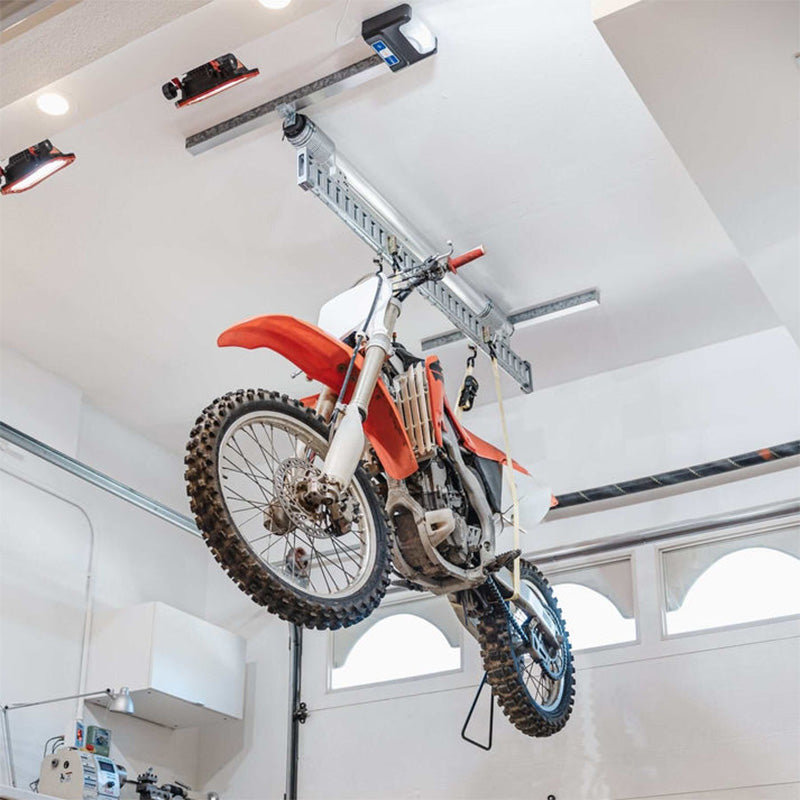

Weary of fending off large objects? Auxx-One takes life to whole new levels! With its powerful 400 lb capacity, this single-motor marvel can lift a variety of heavy objects to great heights, such as bicycles, canoes, truck tops, and fifth-wheel hitches. Use the wireless remote control to guarantee safety while keeping the floor free. With this heavyweight hero for all your garage storage needs, you can revolutionize your area right now.

Features:

• With a 400 lb lifting capacity, you can move everything that's piled up in your garage, including your truck cap, paddleboard, bike, and motorcycle.
• Without a cord Control via Remote: Raise and descend with ease—all at your fingertips
• Priority Safety: No spinning, no twisting, and no overloading—two wires at your disposal
• Personalized Fitting: Carabiners, hooks, and snug straps guarantee a balanced bounty.
• Multifunctional E-Beam: Corrosion-resistant industrial steel track keeps everything in place
• Complete Solution: Storage for bikes, boats, and equipment will free up room.

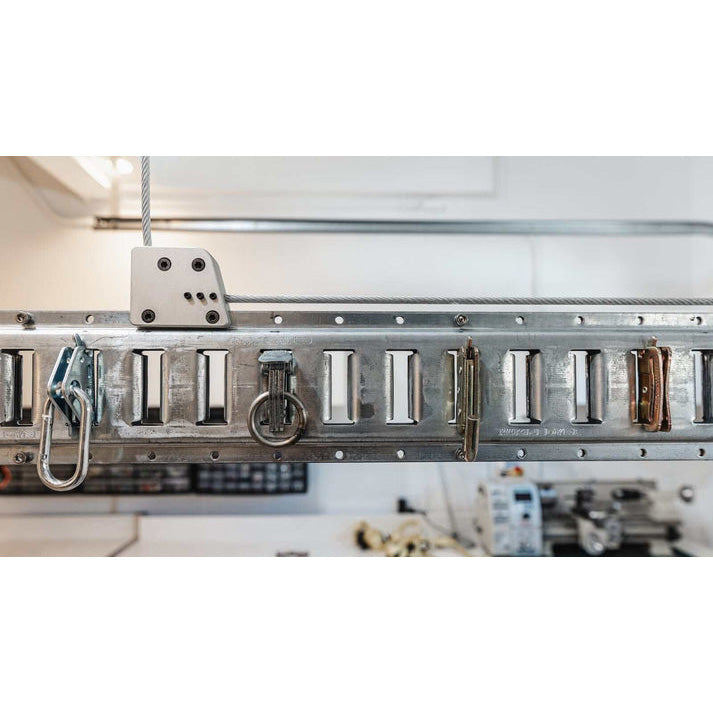

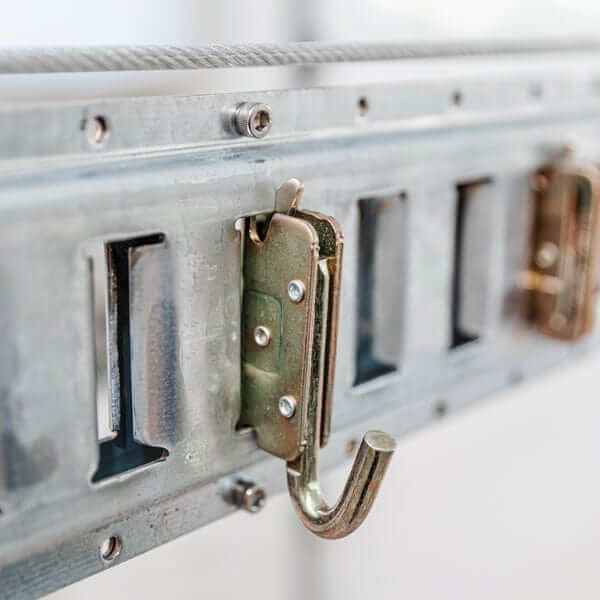

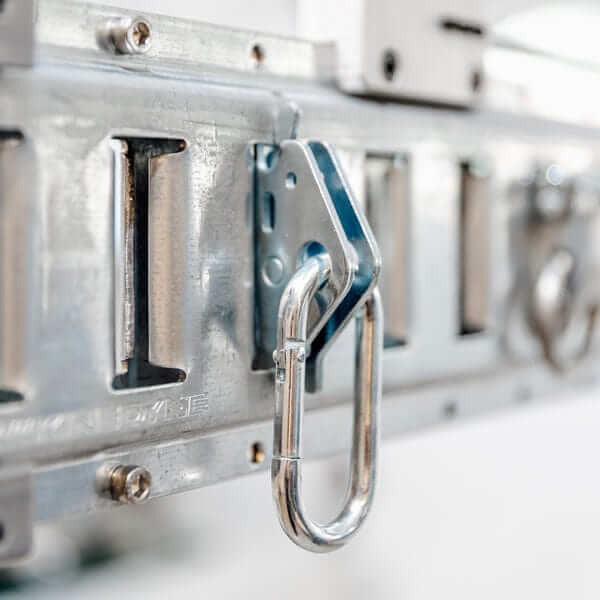

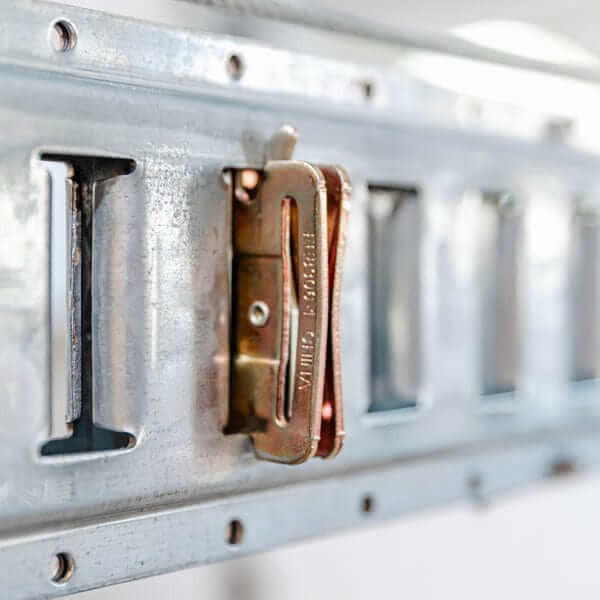

• Fast-Change Attachments: Change out rigs quickly: carabiners, rings, and web guides
• Made with pride in the USA: Fine craftsmanship supported by patriotic American values
• Two-year guarantee
• 60-Day Money-Back Promise

What’s Included:

• Aux-One Lifter Capable of Lifting 400 Lbs
• Lifter Controller with Optional Stopping Point Programming
• Remote Control via Wireless
• Two Channels for C-Strut
• Versatile E-Beam Lifting Structure
• Hardware for Mounting

SPECIFICATIONS

General specs

• Model: Auxx-One 1400
• Lifting Capacity: Up to 400 lbs
• Max. Travel Distance: 22 ft maximum with extension

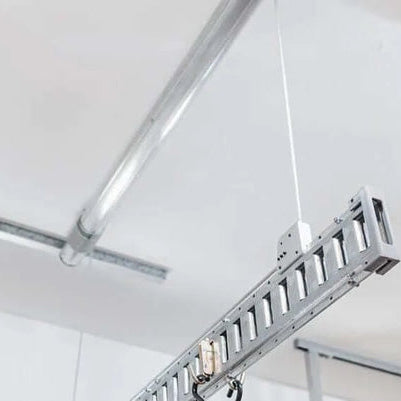

Ceiling Support

• Type: (2) 1 5/8" x 30" strut channels
• Fasteners: (6) 5/16" x 4" SPAX© Lag Bolts
• Cable: 3/16” Vinyl-coated Steel 7x19
• Cable Strength: 4,200 lbs ultimate tensile strength

Operating Requirements

• Switch Voltage: 110V / 120V
• Transmitter: 433.92 MHz
• Electrical Cord: 10 FT / 16 gauge / NEMA 5-15
• Min. circuit size: 15 amp

Motor

• Type: IP44 (T-Motor)
• Rated Power: 680 W
• Rated Current: 6.0 A
• Voltage / Phase: 100-120V AC / Single
• Duty Cycle @ Max. Capacity: 3 min on, 15 min off. If you run the Auxx-One continuously for more than 3 min at a time, the motors will switch off automatically and require to cool down for 15 min or less.

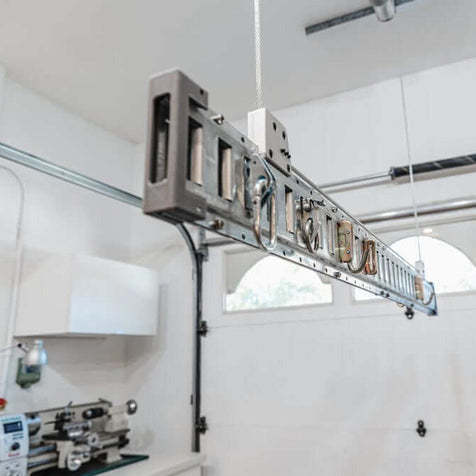

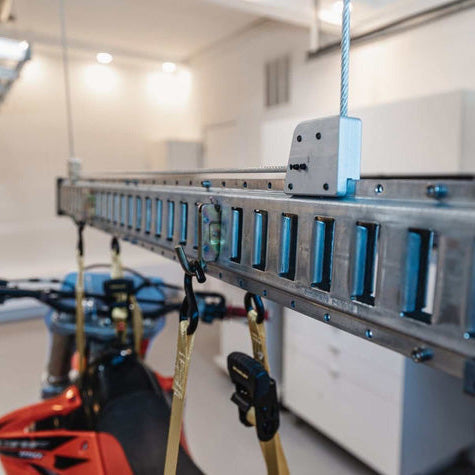

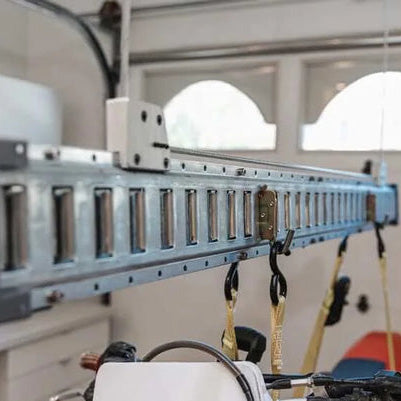

E-Beam Lifting Frame

• Height: 5 inches
• Length: 5 ft
• Material: Galvanized Steel
• Slot Spacing: 2 in on the center
• Color: Silver
• Corrosion resistant
• See the dimension illustration below:

INSTALLATION

For installation please call 805-907-9322
